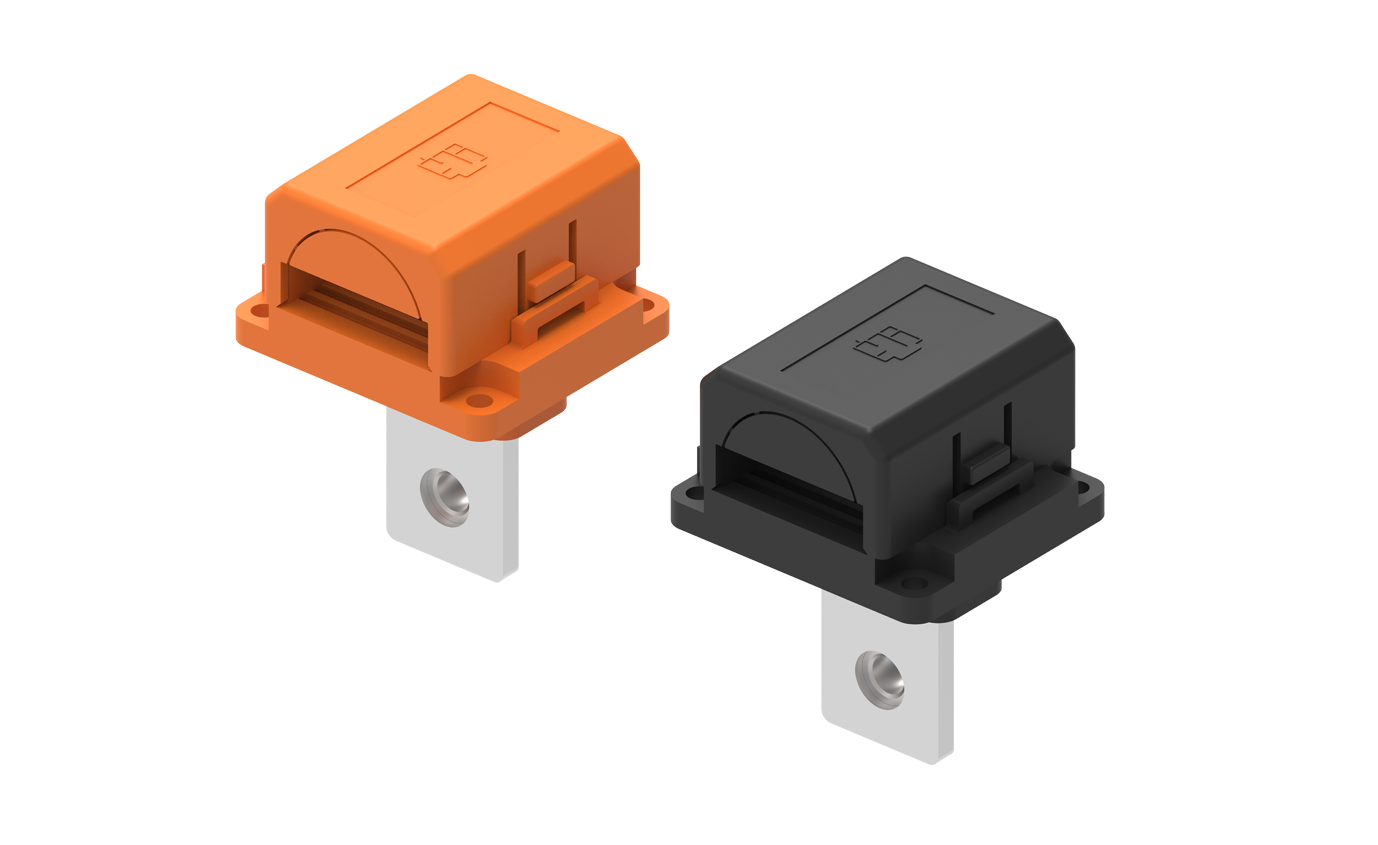

ZY-PC102 Series
HIGH VOLTAGE ENERGY STORAGE CONNECTOR
Electric shock protection
Color Foolproof
Flexible Busbar／Cable Connection
Electric shock protection
Color Foolproof
Flexible Busbar／Cable Connection
Technical Parameter/技术参数 | Numeric Value/数值 | ||
| Item/项目 | Performance Specifications/性能参数 | ||
| Standard/执行标准 | UL4128、SAE/USCAR-2 、LV 215、GB/T 37133、T/CSAE 178 | ||
| Rated voltage/额定电压 | 1500V DC | ||
| Rated current/额定电流 | 300A | ||
| Voltage resistance/耐电压 | 6800V DC | ||
| Insulation resistance/绝缘电阻 | ≥100MΩ | ||
| Degree of protection/防护等级 | IP21 | ||
| Cycles life/插拔次数 | 螺栓连接/Bolt Connection | ||
| Vibration Level/振动等级 | USCAR-2 V1 | ||
| Temperature Range/工作温度 | - 40℃～+125℃ | ||
| Flame retardant rating/阻燃等级 | UL94 V-0（Plastic parts/塑料件）、UL94 HB（Rubber parts/橡胶件） | ||
