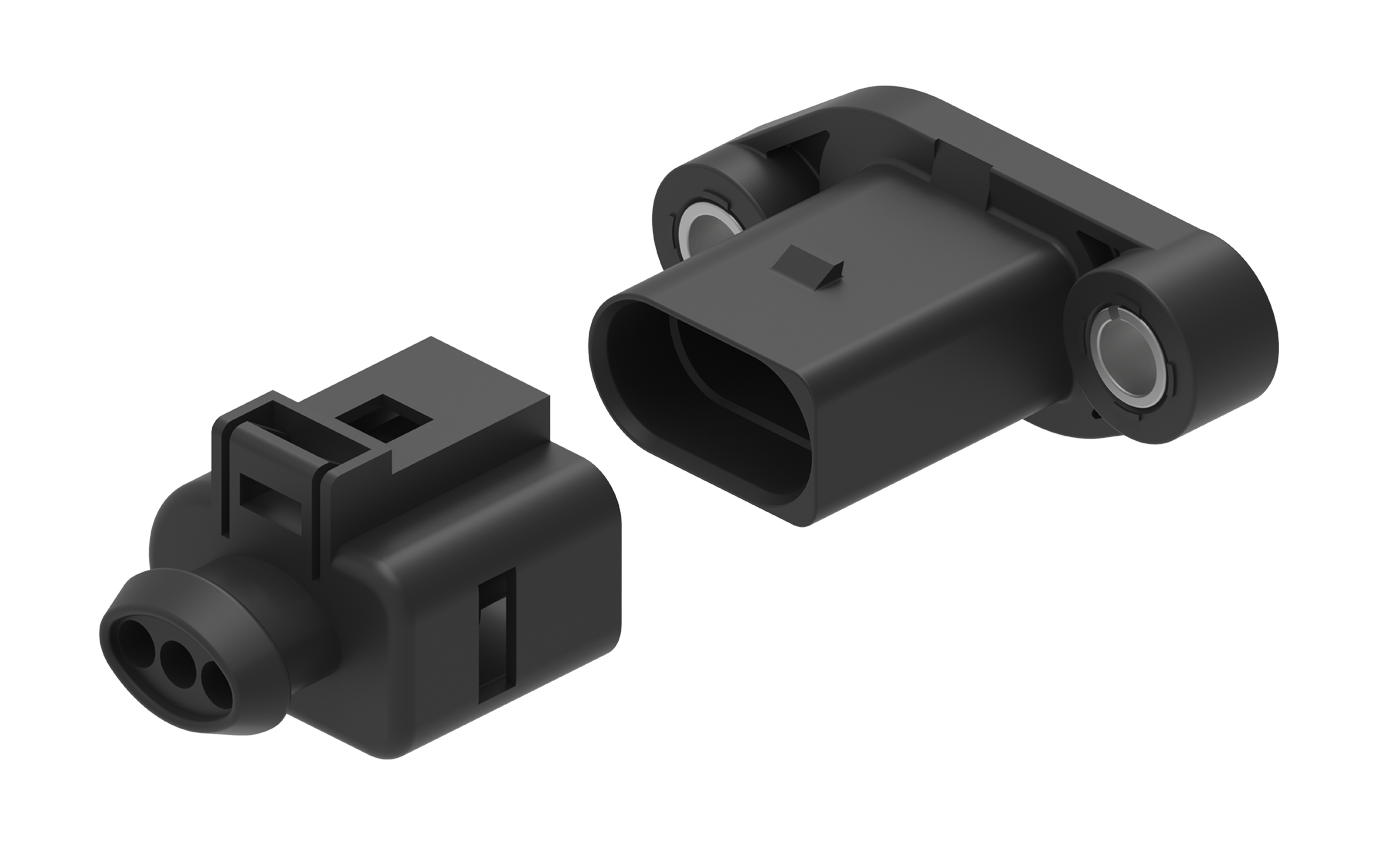

ZY-SS3 Serie
Niederstrom-Steckverbinder
Narrensicheres Tastenlayout
Fischaugenkontakt
Eindrückverbindung
Narrensicheres Tastenlayout
Fischaugenkontakt
Eindrückverbindung
Technical Parameter/技术参数 | Numeric Value/数值 | ||
| Item/项目 | 0.35mm² | 0.5mm² | 0.75mm² |
| Standard/执行标准 | SAE/USCAR-2、IEC 60352-5 | ||
| Rated voltage/额定电压 | 14V DC | ||
| Rated current/额定电流 | 3A | 5A | 7.5A |
| Voltage resistance/耐电压 | 500V AC | ||
| Insulation resistance/绝缘电阻 | ≥100MΩ | ||
| Degree of protection/防护等级 | Mated/插合后：IP68&IP6K9K | ||
| Cycles life/插拔次数 | ≥25 | ||
| Vibration Level/振动等级 | SAE/USCAR-2 V1 | ||
| Ambient temperature/使用环境温度 | - 40℃～+125℃ | ||
| Flame retardant rating/阻燃等级 | UL94 V-0（Plastic parts/塑料件）、UL94 HB（Rubber parts/橡胶件） | ||
